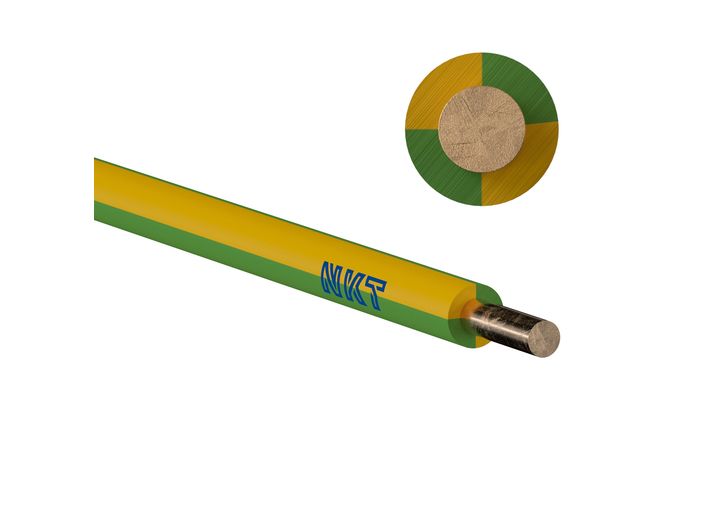

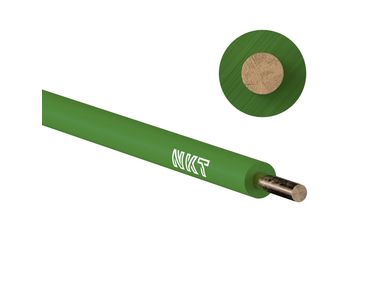

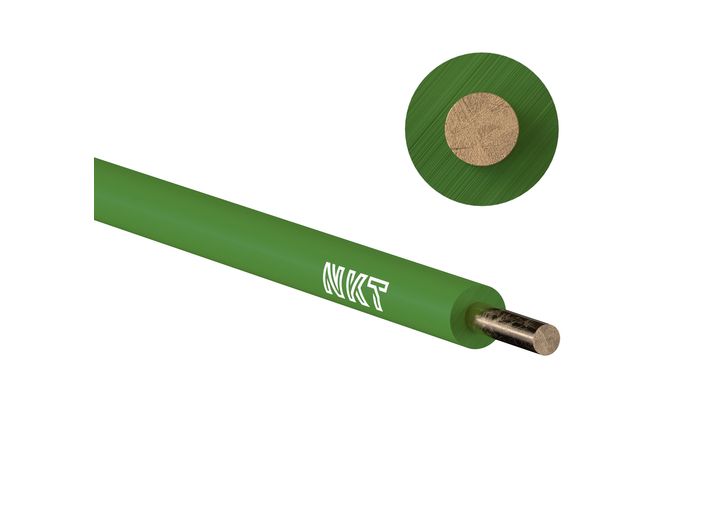

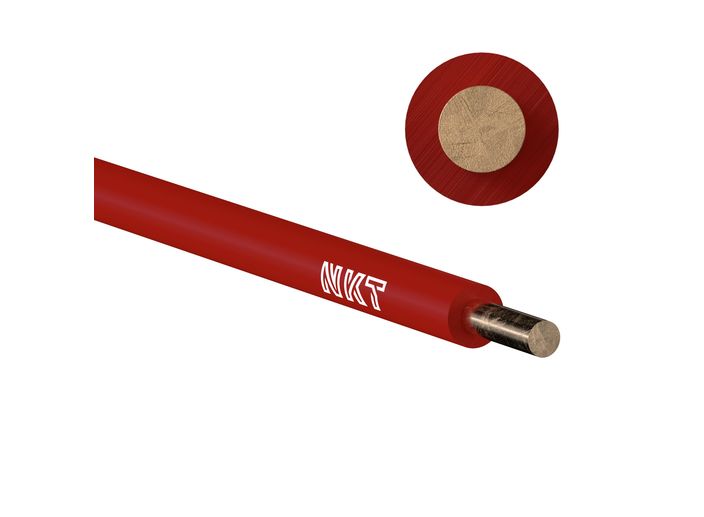

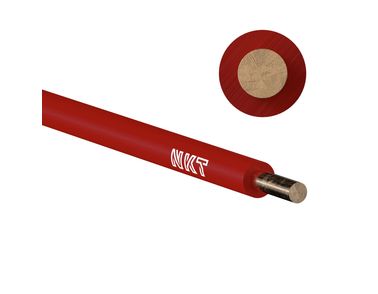

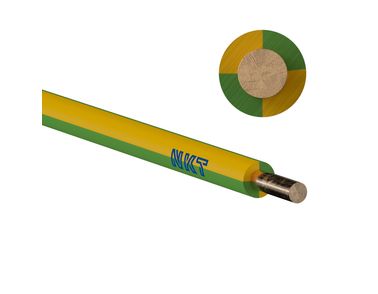

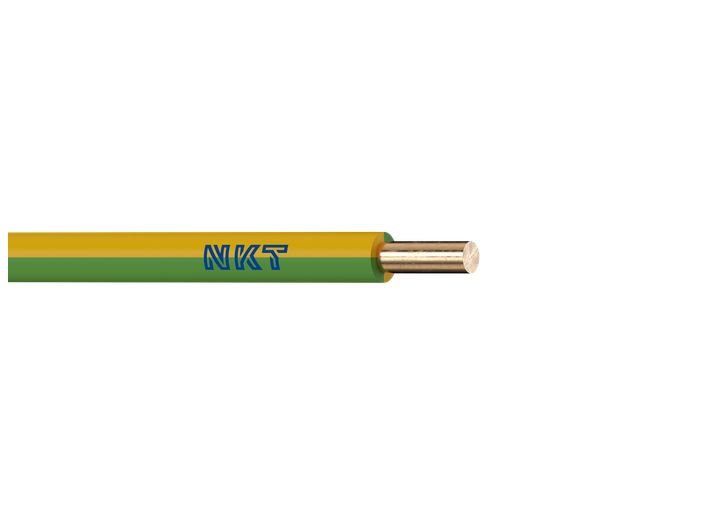

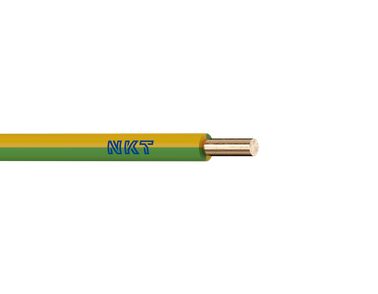

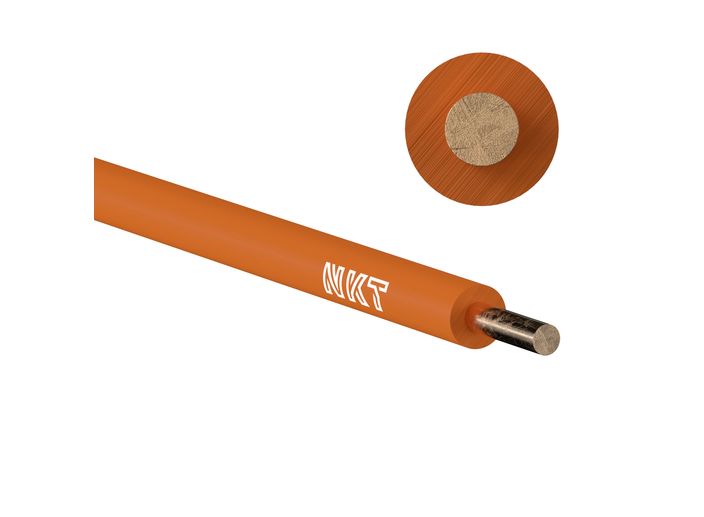

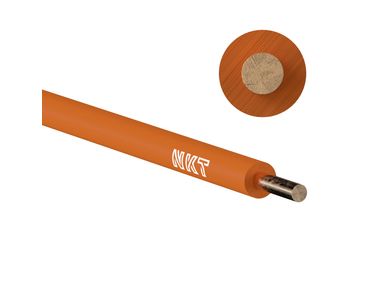

H07V-U

H07V-U is a premium single conductor installation cable for fixed installations, providing exceptional performance and reliability.

·       Voltage: 450/750 V

·       Temperature range: -30°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)

·       Min. laying temperature: -5°C

·       Compliance: EN 50525-2-31, RoHS, REACH

Ideal for installation in the air, in conduits or installation rails, and for installation in electrical cabinets. They can be used to supply light sources, control devices and signalling circuits, in accordance with the relevant regulations.

·       Conductor: Copper class 1

·       Insulation: PVC

·       Cross-section range: from 1.5 mm2 to 10 mm²

·       Insulation thickness: 0.7 mm to 1.0 mm

·       Outer diameter: 2.7 mm to 5.4 mm

·       Cable weight: from 19 kg/km to 105 kg/km

Upgrade your installations with H07V-U cables for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
